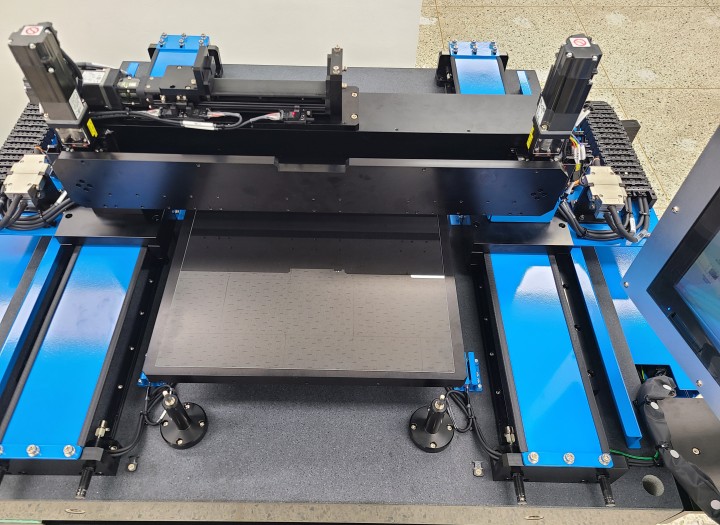

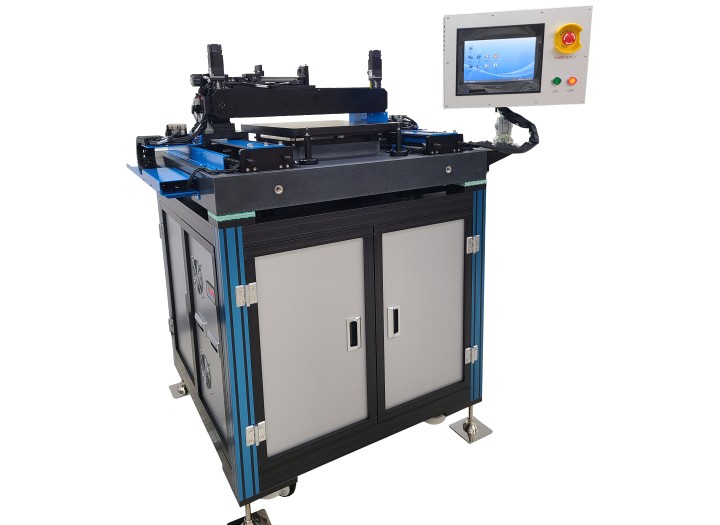

Gantry Slot-die Coater YJC-LTC-G
| - Working plate 2세대급 이상 | |
|---|---|
| - X-axis & Z-axis 동기 제어 | |
| - Porous chuck 균일도 10um 이하 | |
| - 고정밀 Height gauge | |
| - Film roll 기판 적용 가능 |
본문
Large-area organic thin films with high uniformity
e.g, OLED lighting panels, organic solar cells, electrochromic devices, etc.)
-
-
Slot coating : Conductive PEDOT/HIL PEDOT
Ag metal gird : Screen printing
Substrate size : 370mm x 470mm
-
-
Slot coating : HIL/EML
Evaporation : ETL / AI
Substrate size : 370mm x 470mm
Fabrication of fine and curved thin-film stripes
Use the meniscus guide with u-tip
u-Tip using PET or PI film fabricated by a laser cutter
Fabrication of large-area anti-Moire filter
Feasible by slot-die coating of 20-um-size particles
