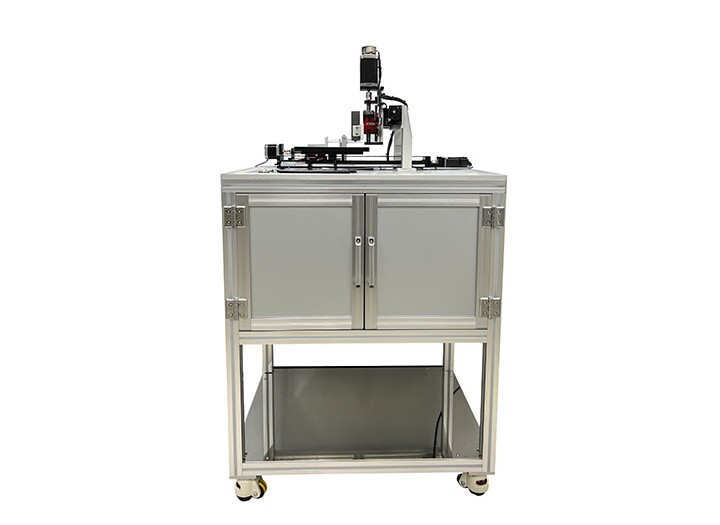

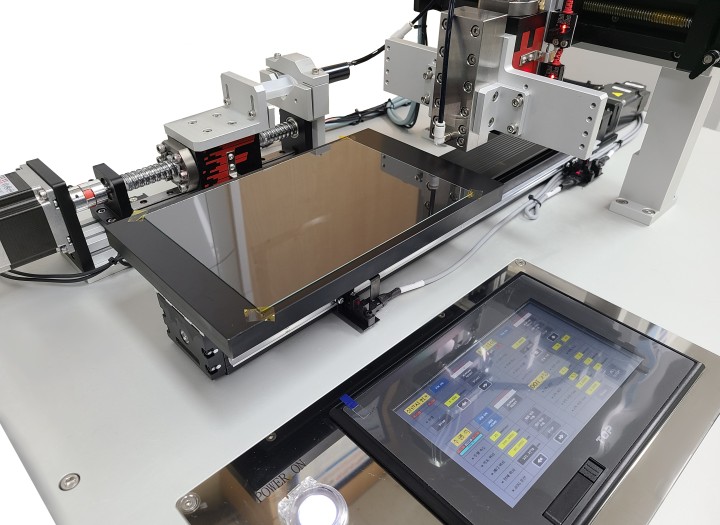

YJC-MTC-B YJC-MTC-B
| - 초저가 | |
|---|---|
| - 소형 | |
| - R&D 최적화 | |
| - 다양한 기능 구현 가능 | |
| - 두께 ≥50 nm, 폭 ≥80 ㎛, 균일도 ±5% | |
| * Coater size(㎣) 1,074(H)×800(L)×580(D) |
본문

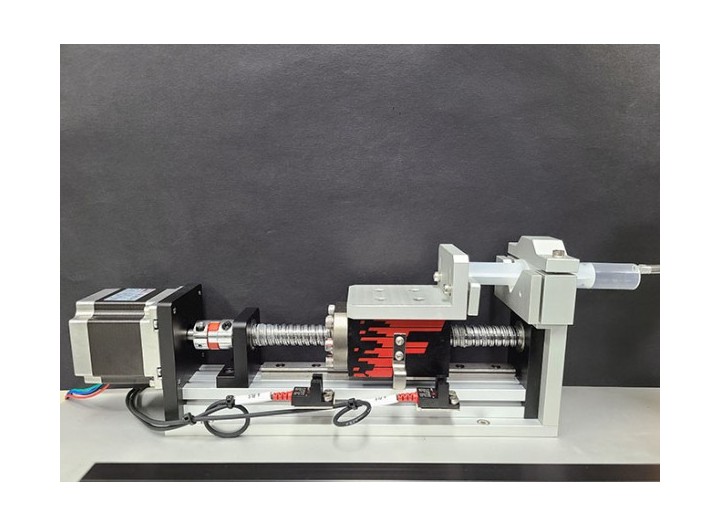

Syringe Pump
Built-in
Flow rate: min. 1.5 μl/min

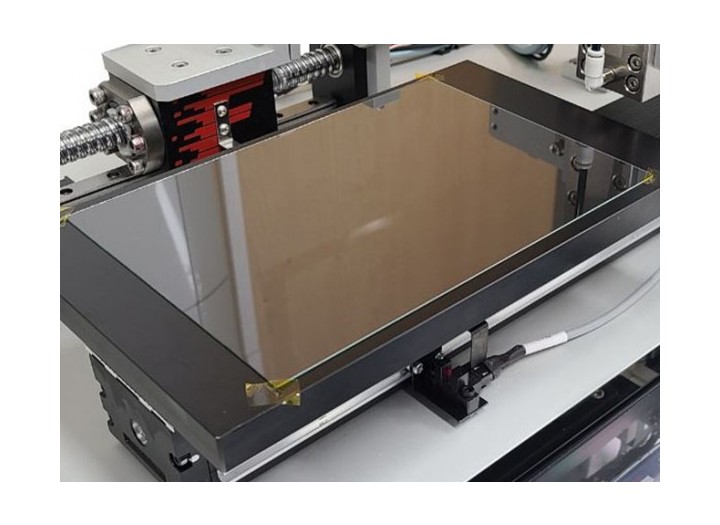

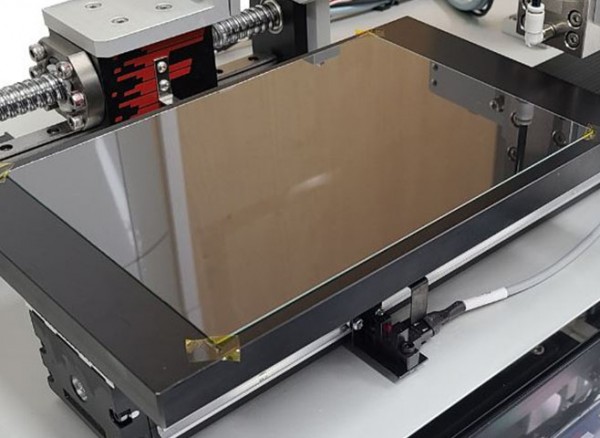

Working Plate
Area: 150 × 250 ㎟
Speed: 1 ~ 100 mm/s
Heating plate (option)
CCD Camera (Option)
Display meniscus
Control coating gap

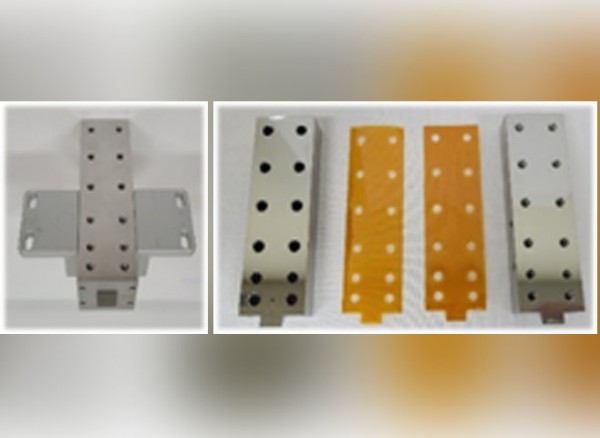

Coating Module (slot-die head)
Coating gap: ≥ 1 μm
(resolution 1μm)
Repeatability: ±1 μm
Coating width: max. 120 ㎜
Manual movement left and right

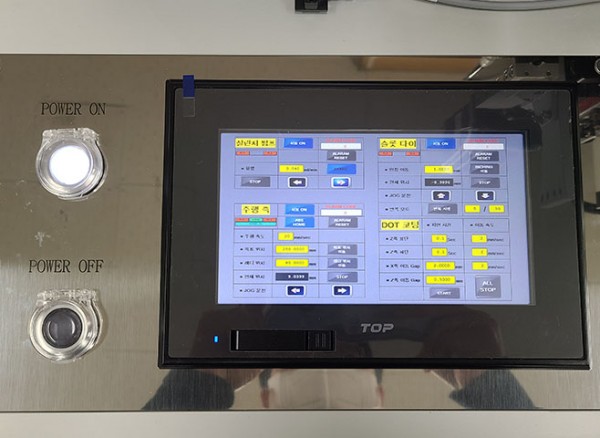

Touch Screen
4 modes: x-axis, z-axis
pump, intermittent coating

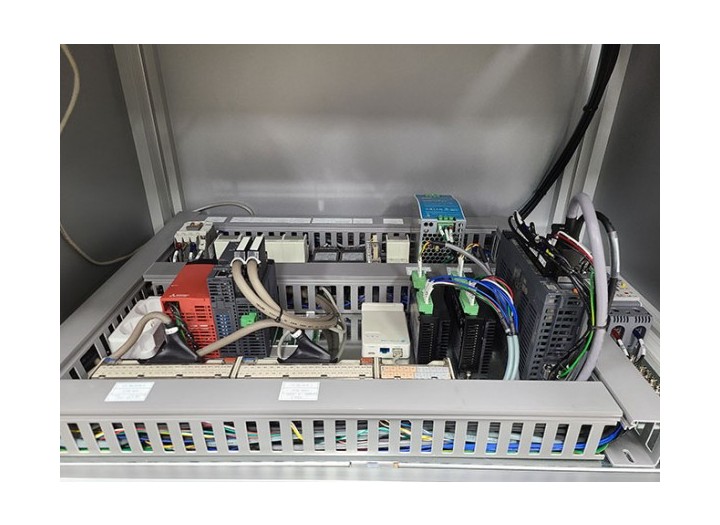

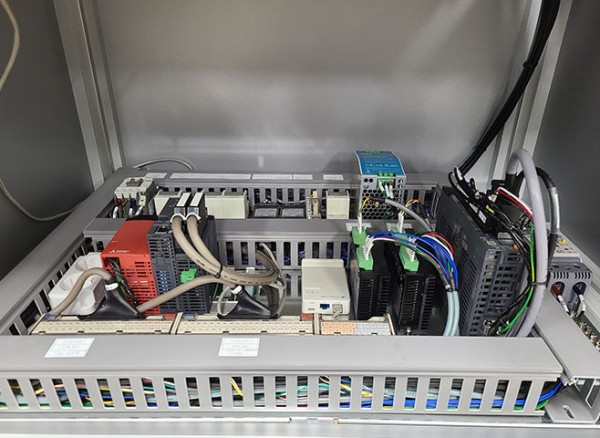

PLC Control
220V, 15A
-
Stripe coating of organic thin films with adjustable width
Peasible by varying the meniscus guide and shim
(e.g Organic / Perovskite / Electrochromic thin films)
-

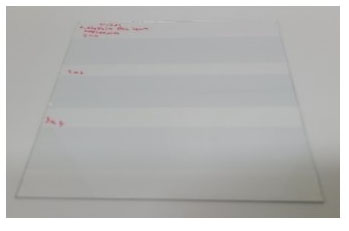

PEDOT:PSS stripes
(60-nm-thick, 2-cm-wide)
-

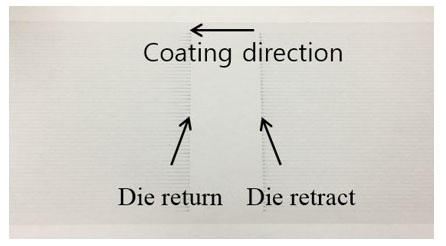

Intermittent coating of organic stripes
Retract and return of slot-die head
-
Inkjet-like dot coating
Use a needle as a nozzle
PLC sequence contrlo of x-and z-axis motors
(program included)
